TR IHX600 - Turbo Kit Upgrade For VW / AUDI EA888 Gen 3 (MQB)

TR-TW1005

Regular price $2,500.00 Sale

Bigger is better. With the success of the IHX475 for the VW / Audi EA888 MQB Engine, we have released the larger IHX600 turbo kit. With a larger housing area in the IHX600, the turbo kit will aid the motor in delivering a powerful 600 HP. True to its form, the IHX600 turbocharger will still be 100% bolt-on. This turbocharger is still completely new and manufactured from the ground up.

Rather than putting new internals in a stock IS38 housing, we constructed our own housing to use with the custom internals, proving beneficial as all defects with the stock IS38 internals and housing have been corrected such as housing cracking and stock shaft breaking.

The IHX600 is the next step up for making power with the VAG MQB platform modular chassis and EA888 1.8T/2.0T engines. Thanks to a re-engineered billet compressor wheel, the IHX600 is able to deliver more power, maintaining its durability in high boost situations. Created for longevity with strict tolerances, the turbocharger is also VSR balanced at high speeds.

Technical Specification

Bearing Type:

Journal-Bearing

Flange Type:

VAG

Compressor Wheel: In: 52.56mm | Ex: 68mm

Turbine Housing:

9cm2

Turbine Wheel:

In: 60mm | Ex: 54mm

Horsepower: 600 HP

Product Compatibility

 Vehicle Model Submodel Engine
Audi 8V S3 Quattro 2.0T
A3 8V FWD 1.8T
A3 8V Quattro 2.0T
TT MK3 (2014+) 2.0T
TTS MK3 (2014+) 2.0T
VW Golf MKVII GTI 1.8T
Golf MKVII Hatchback 2.0T
Golf MKVII Sportwagen Gen3 2.0T
Golf MKVII R 2.0T
Seat Leon MK3 1.8T
Leon MK3 2.0T
Cupra Typ 5F 1.8T
Cupra Typ 5F 2.0T
Skoda Octavia MK3 1.8T
Octavia MK3 2.0T
vRS Typ 5E 1.8T
vRS Typ 5E 2.0T

Features

  • Enlarged Lightweight Stainless Steel Exhaust Housing
  • Larger compressor wheel and exhaust turbine
  • Larger and stronger center shaft
  • Better heat retention
  • VSR Balanced
  • Compatible with IS20 and IS38 wastegate/diverter valve

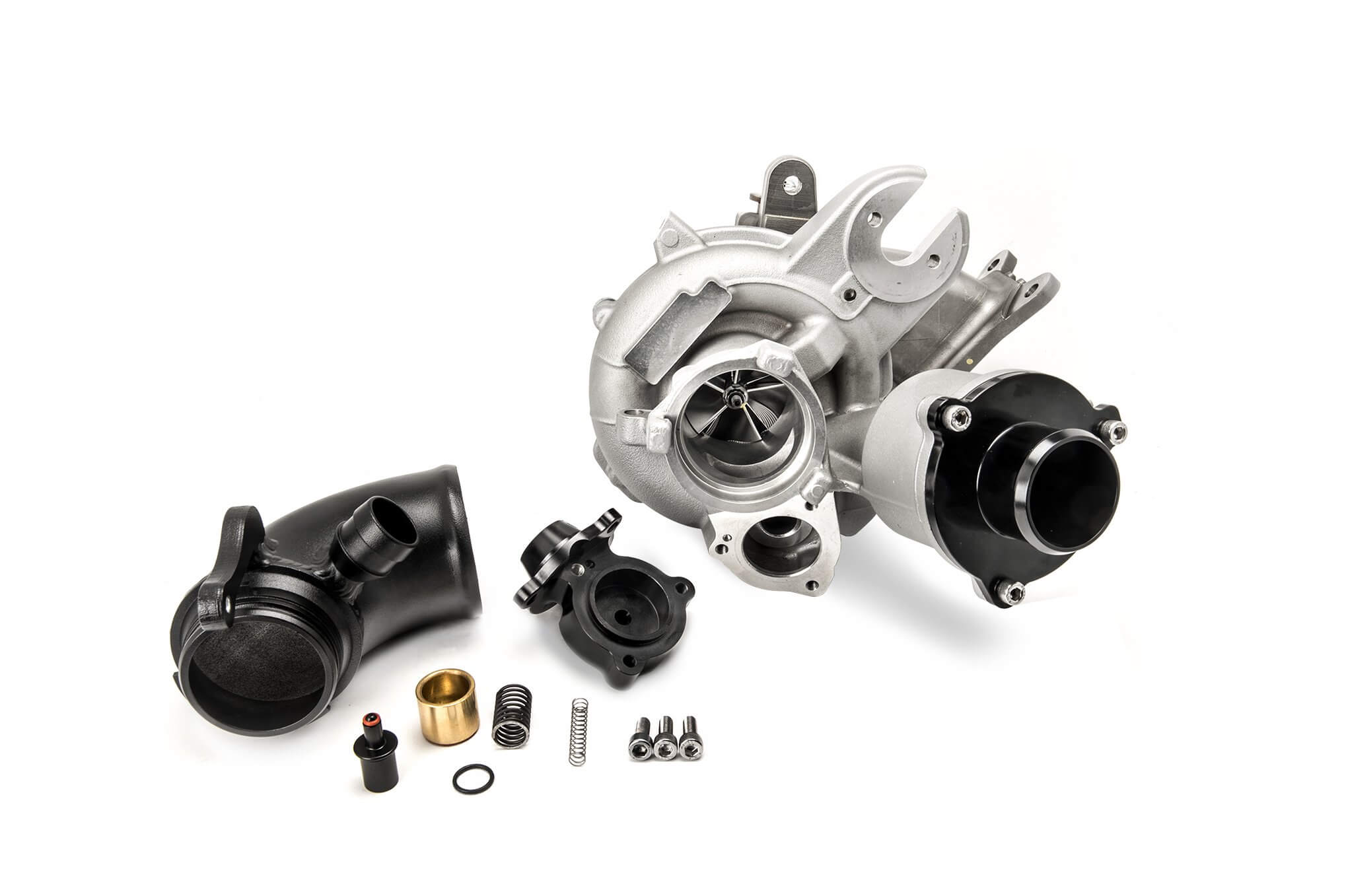

Product Contents

  • Turbocharger
  • Gaskets
  • Hardware Kit
  • Black Aluminum Turbo Inlet Pipe
  • Stock Diverter Valve Adapter Kit
  • Turbocharger Muffler Delete
